Carton flow rack is a high-density picking system designed for fast-moving small to medium products in e-commerce and DTC fulfillment operations. It combines gravity-fed product flow with ergonomic picking positioned for maximum productivity. ZEOU Metal offers warehouse fulfillment shelving solutions for modern picking operations.
What Is Carton Flow Rack?

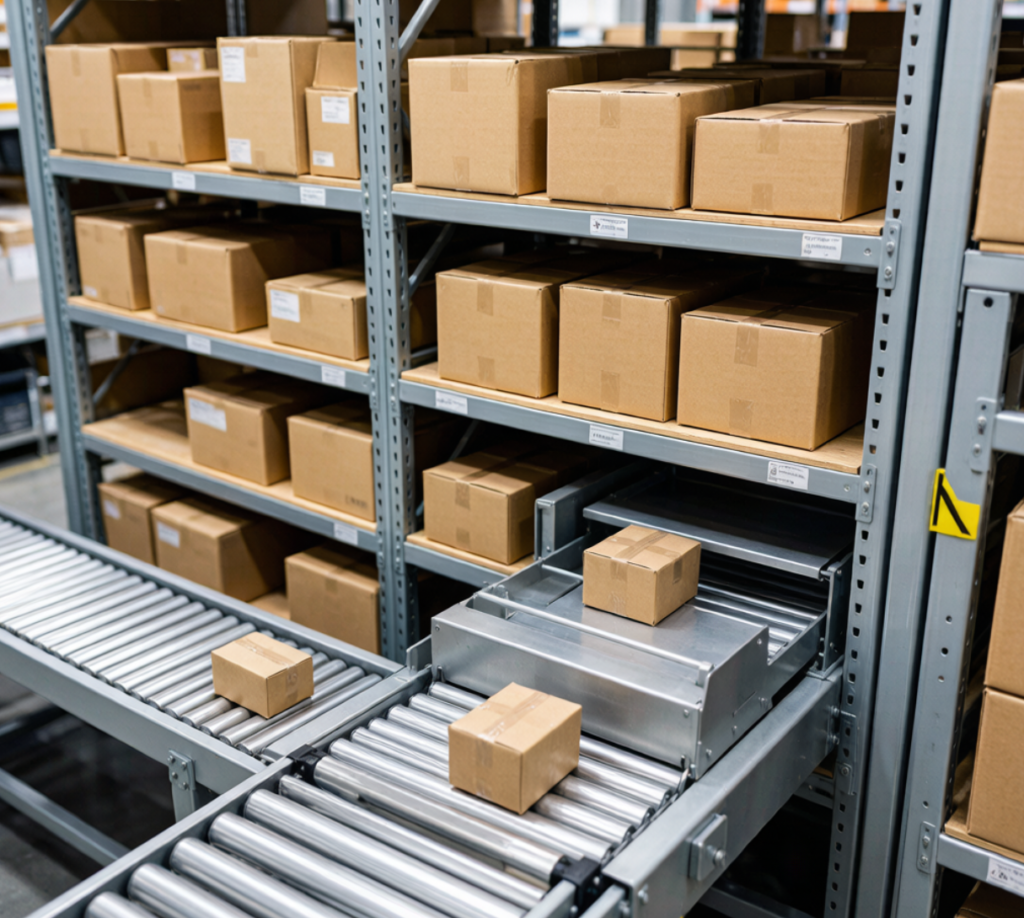

Carton flow rack (also called dynamic picking rack) uses gravity roller tracks mounted on an inclined rack structure. Cartons or bins loaded at the rear flow to the front picking position. The Wikipedia article on pallet racking describes flow systems. Carton flow is specifically designed for handling individual cartons rather than pallets. Lane widths typically accommodate one carton width. The system keeps the pick face constantly stocked as replenishment happens from the rear without interrupting picking.
Pick-to-Flow Concept
Carton flow rack creates a continuous pick face where products are always within arm’s reach — eliminating walk time and search time: Pickers remain in a fixed pick zone. Products flow forward as cartons are removed. No walking required to find products. No bending or reaching into deep shelves. Replenishment occurs behind the picker without interference. Carton flow combined with pick-to-light technology can double picking productivity compared to static shelving. ZEOU’s industrial shelving solutions integrate with flow rack for complete warehouse systems.
Lane Configuration
Standard lane depth: 4-8 cartons per lane. Lane width matches carton width (typically 12-24 inches). Multiple lanes per bay, 3-5 levels high. Each SKU gets one or more lanes. For high-volume SKUs, multiple lanes are assigned. For slow movers, multiple SKUs share a lane using lane dividers. Roller pitch: 1.5-3 inches for carton flow. 3-4 inch pitch for heavier cases.
E-Commerce Warehousing
E-commerce fulfillment requires high pick rates, accurate order fulfillment, and rapid replenishment. Carton flow rack addresses all three requirements. Pick rates of 200-400 lines per hour are achievable compared to 60-100 from static shelving. The system supports batch picking, zone picking, and wave picking strategies. For e-commerce operations with high SKU counts and fast turnover, carton flow rack is a proven productivity solution. The OSHA ergonomic guidelines recognize flow rack for reducing bending and reaching.
Pick-to-Light Integration
Pick-to-light technology mounts LED displays at each lane position. When an order is released, the appropriate lane lights indicate the product and quantity to pick. Pick-to-light + carton flow is one of the most productive manual picking combinations available. Typical accuracy rate: 99.9%+. Average payback period: 12-18 months through productivity gains. Carton flow rack from ZEOU is designed for seamless technology integration.
Replenishment Strategy
| Method | Description | Best For |
|---|---|---|
| Rear aisle replen | Stock from behind the rack | Dedicated replenishment staff |
| Same-aisle replen | Load above pick level | Single-deep flow lanes |
| Bulk-to-flow | Transfer from pallet rack | High-volume fulfillment |
Carton Flow vs Pallet Flow
Carton flow handles individual cartons (1-50 lbs). Pallet flow handles full pallets (500-3,000 lbs). Carton flow uses narrower roller tracks, lighter structure. Pallet flow uses heavy-duty structural steel. Carton flow achieves higher pick density for small products. Pallet flow maximizes bulk storage density. Many warehouses use both — pallet flow for bulk storage and carton flow for forward picking.
Space Efficiency
Carton flow rack increases pick density by 50-100% compared to static shelving. A 6-lane by 5-level bay occupying 4×8 feet can hold up to 240 cartons (8 per lane x 6 lanes x 5 levels). The same footprint in static shelving with 24-inch depth holds approximately 120 cartons. The gravity feed ensures all space is productive — no wasted reaching into deep static shelves.
Best Product Types
Fast-moving consumer goods, e-commerce pick-pack products, pharmaceuticals and medical supplies, small parts and components, retail store replenishment items, and any product weighing 1-50 lbs with regular turnover. Carton flow is less suitable for very slow-moving items, extremely heavy products over 75 lbs, or items with unusual packaging shapes.
FAQ
What is the difference between carton flow and pallet flow rack?
Carton flow handles individual cartons using narrower roller tracks. Pallet flow handles full pallet loads with heavy-duty structure. They serve different segments of the storage-to-picking process.
How much does carton flow rack increase picking productivity?
Carton flow typically increases pick rates 2-3x compared to static shelving, from 60-100 lines per hour to 200-400 lines per hour.
Can carton flow rack integrate with WMS?
Yes. Carton flow with pick-to-light integrates directly with most major WMS platforms. ZEOU can recommend compatible integration partners.
What is the typical payback period for carton flow rack?
Typically 12-24 months through labor productivity gains. High-volume operations can achieve payback in 8-12 months.
